Protective Frame for the Icom IC-705

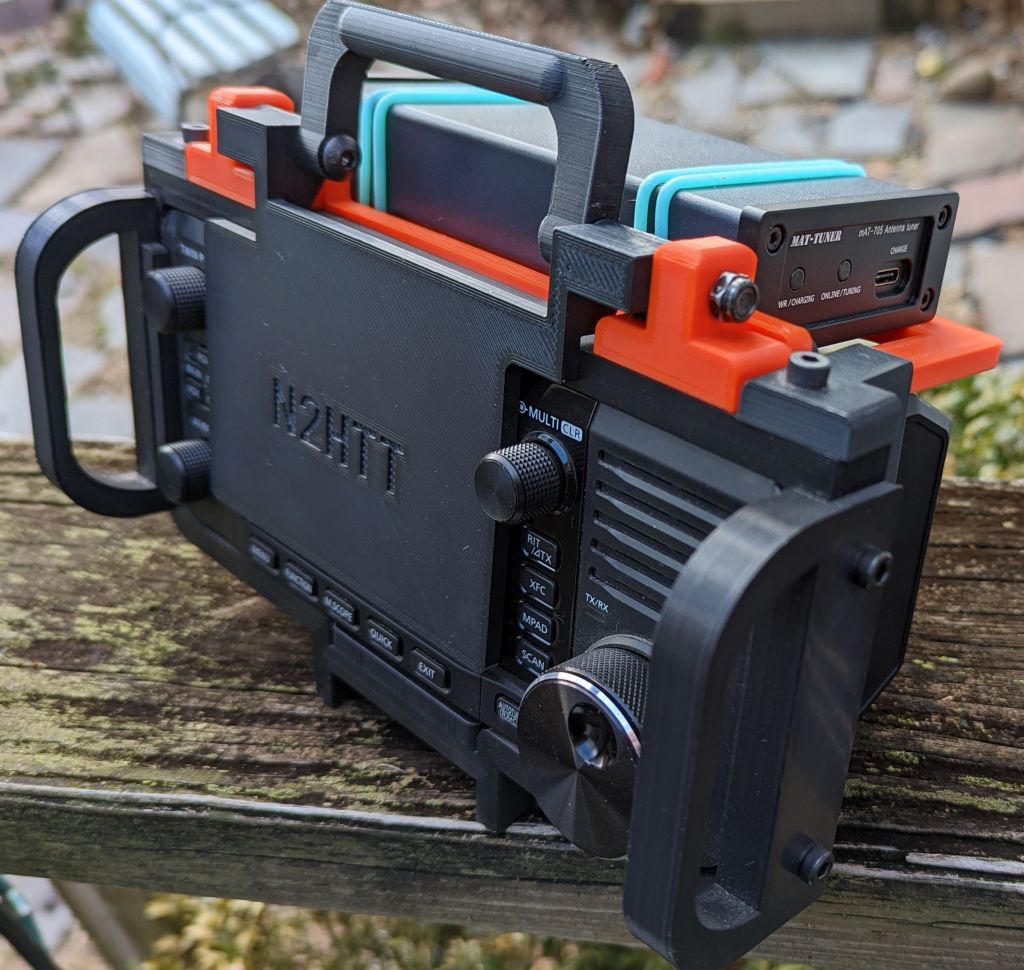

The transport cover can be made in any of the colors we have available, so you can either match the color of your frame or select a contrasting color for easy visibility.

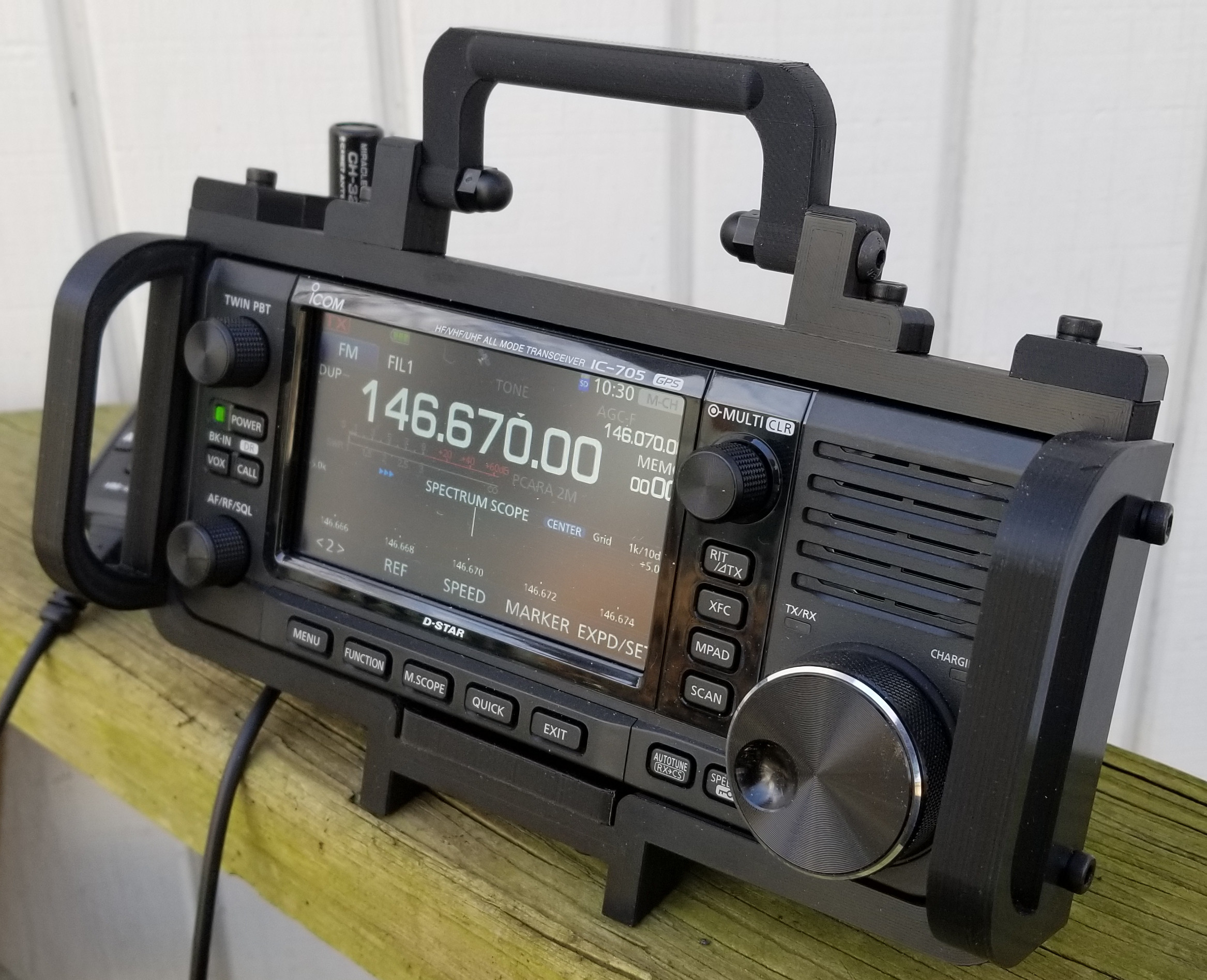

Ic-705 with the protective frame installed

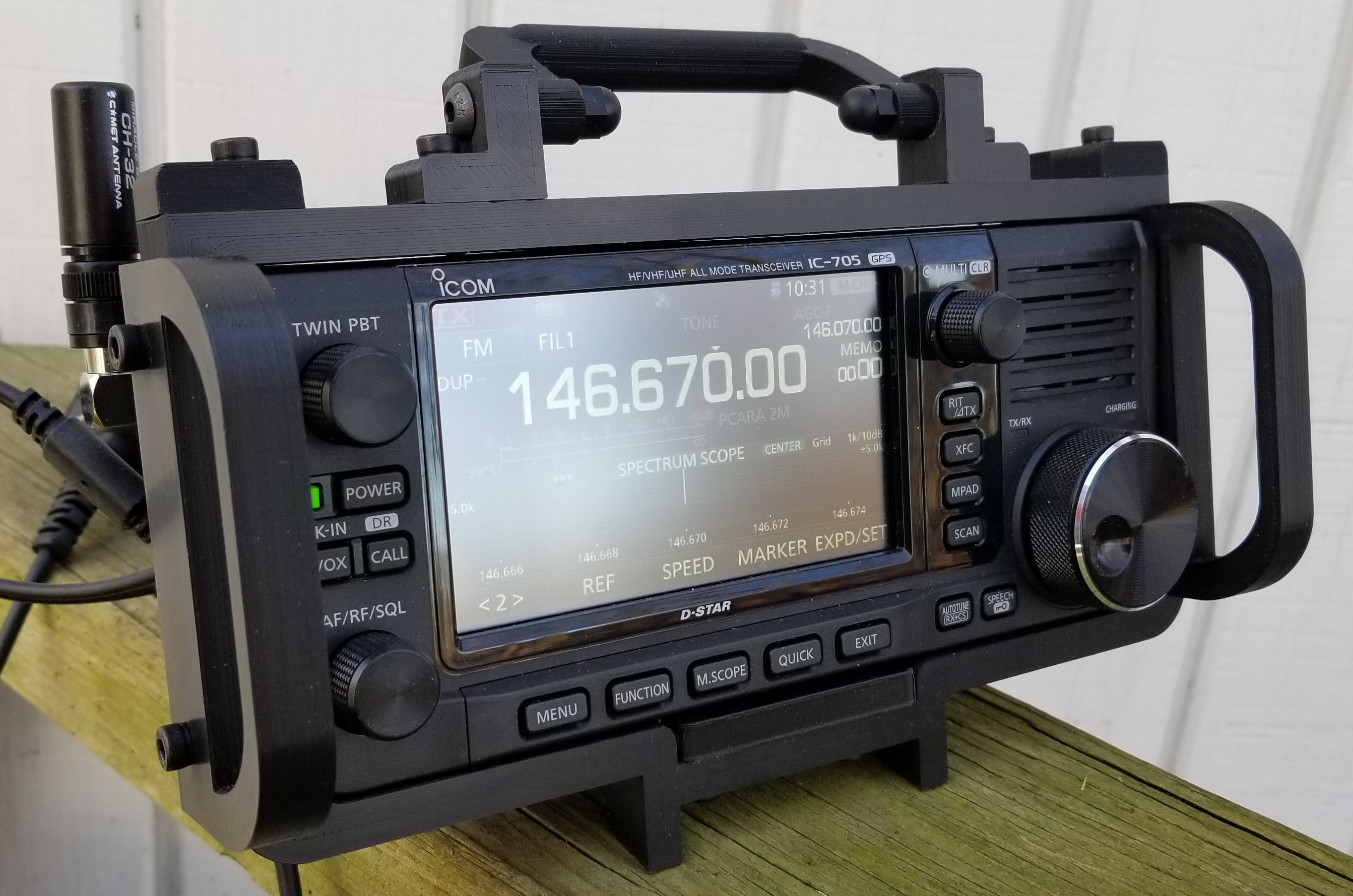

Side rails provide protection for the front panel controls.

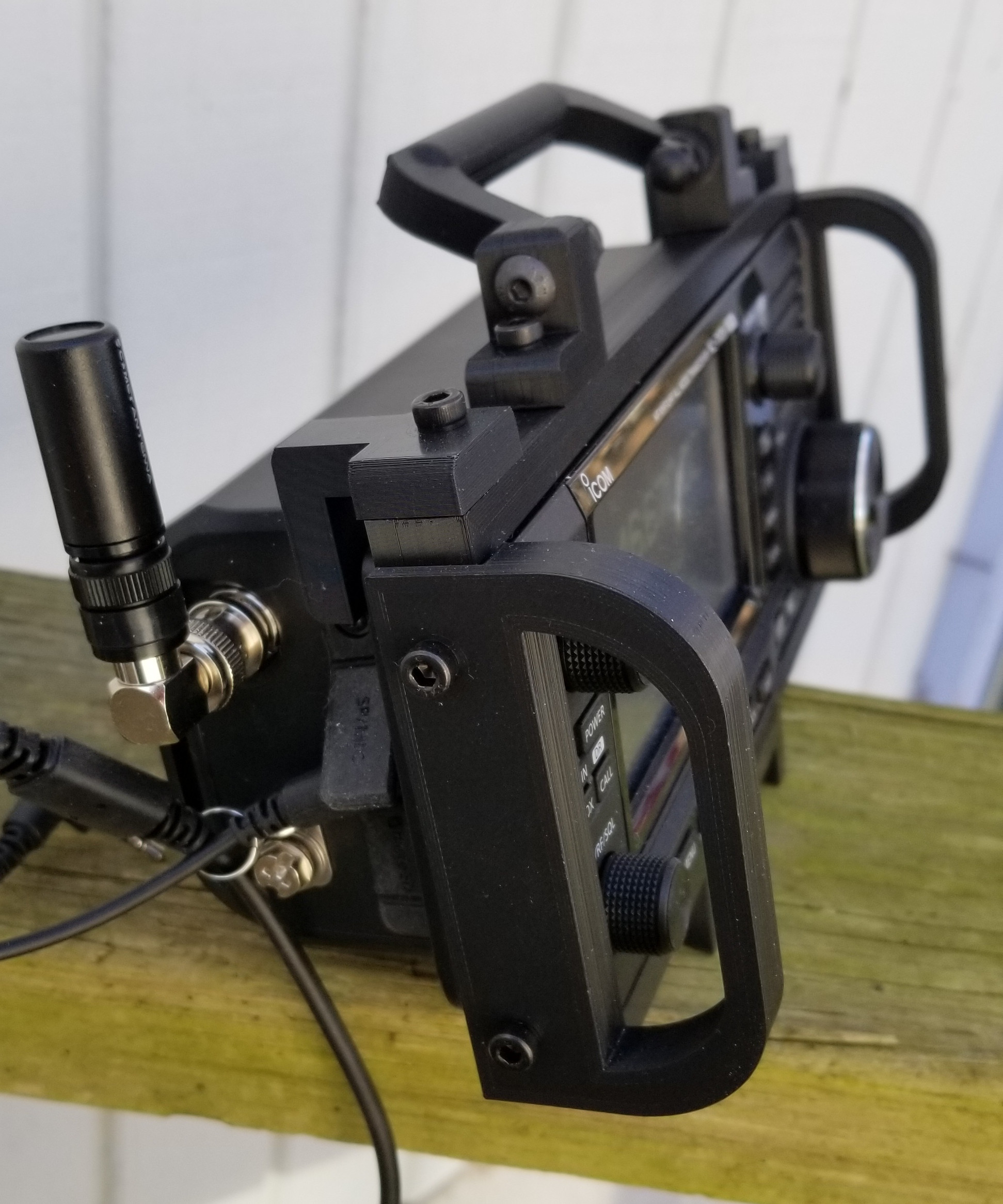

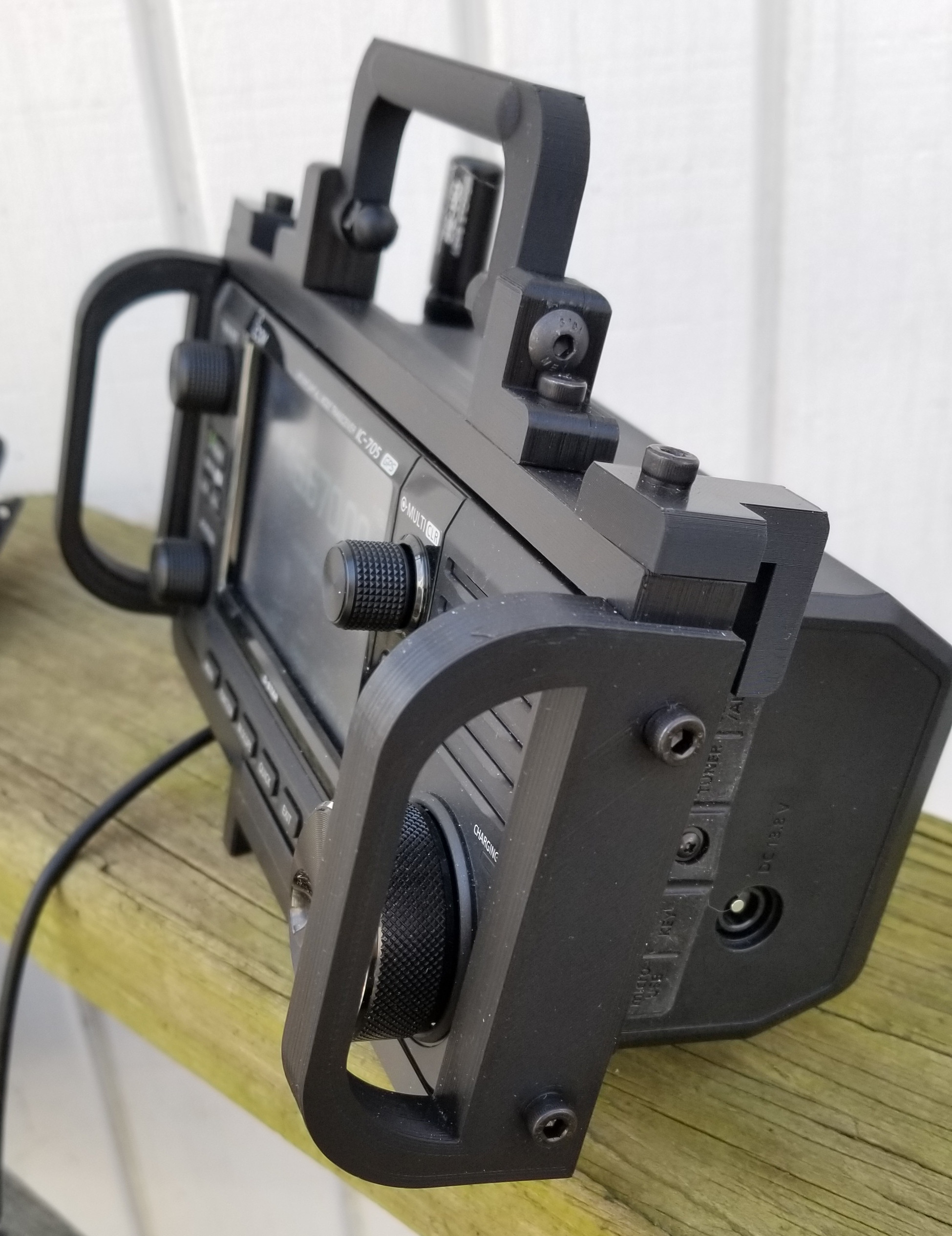

The frame surrounds the front bezel of the radio, but does not interfere with access to the side panel connections.

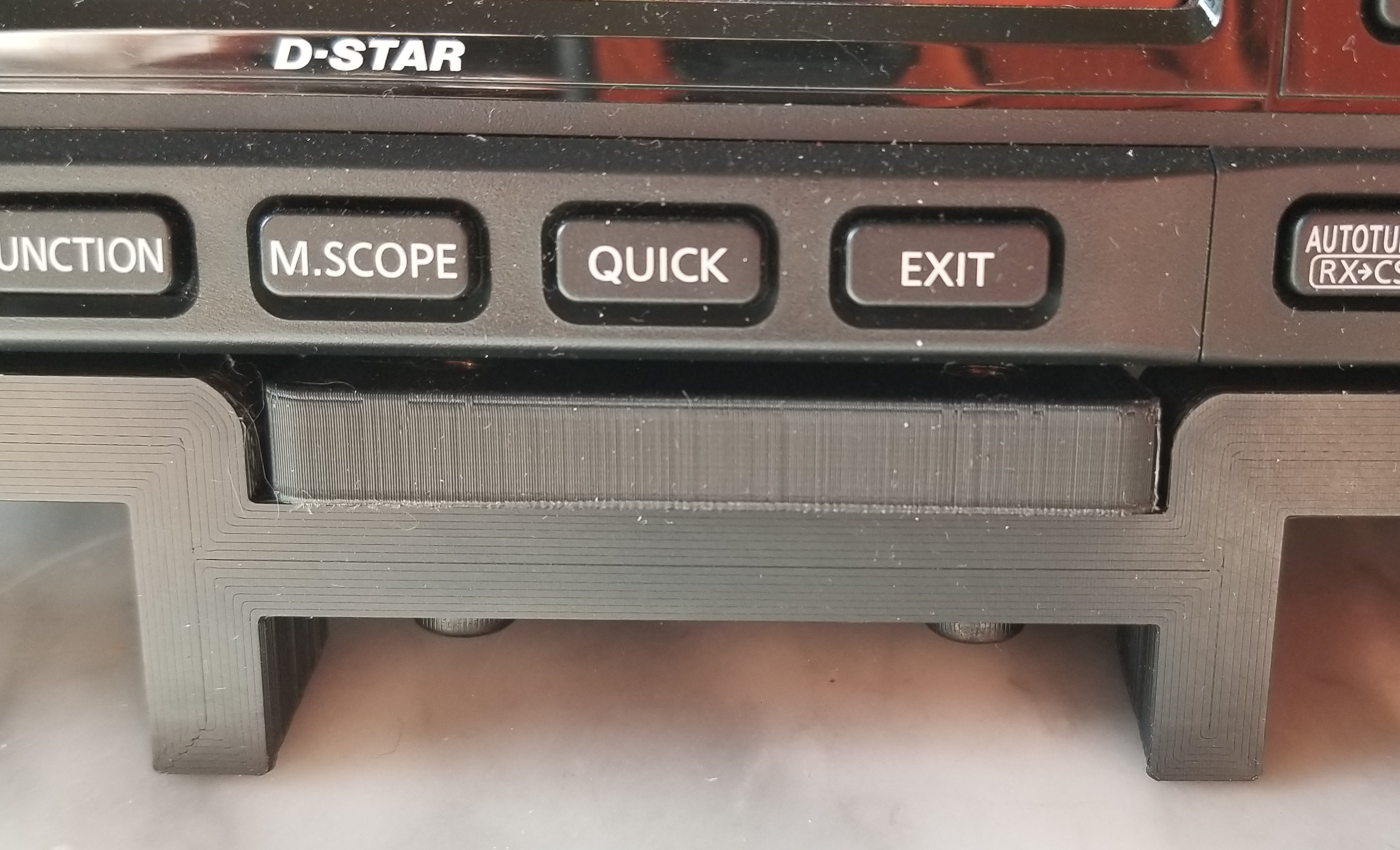

The frame is held by a bottom bracket that attaches securely to the underside of the radio with 4 screws.

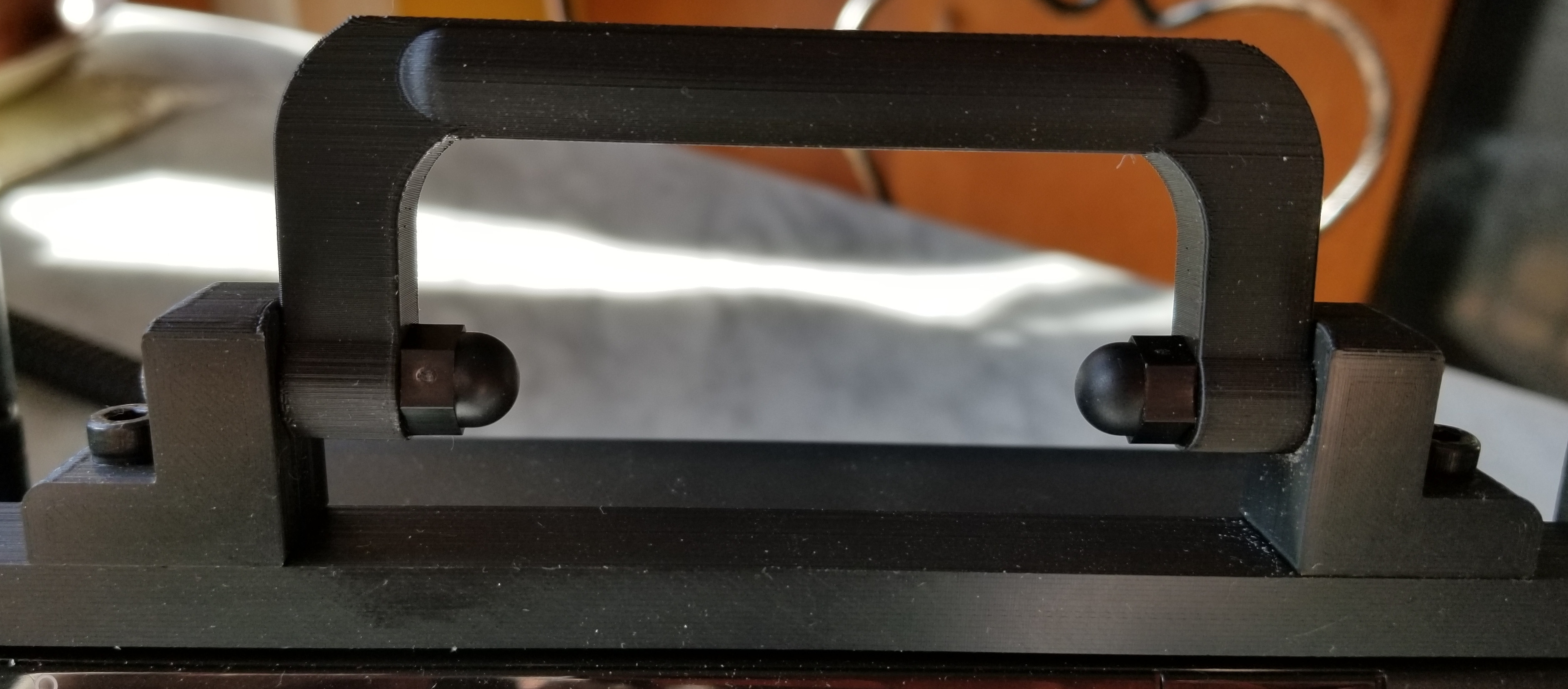

The handle folds down when not in use.

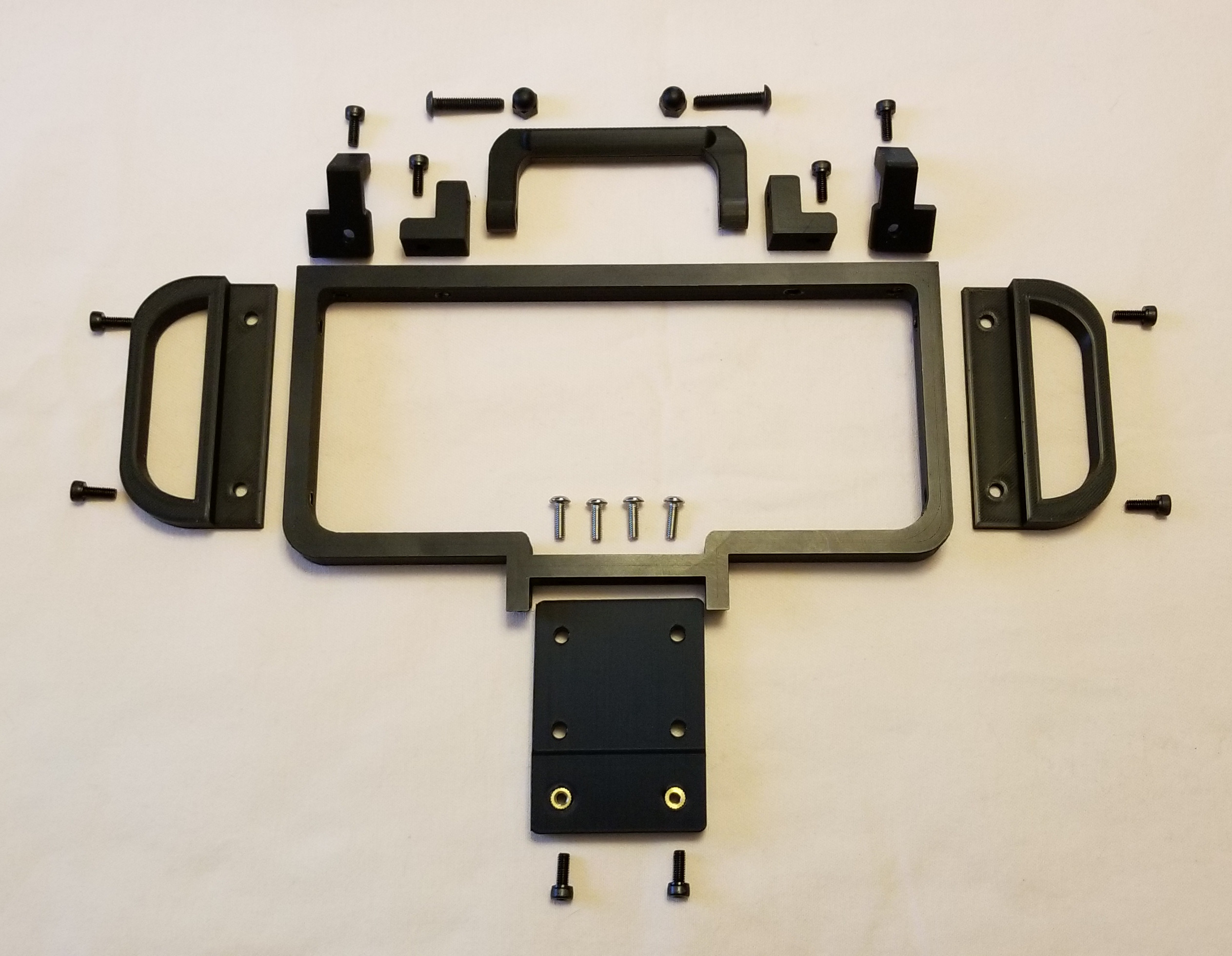

Assembly is straight forward requiring only hand tools. All hardware is included in the kit.
Flip-up screen protector used as a sunshade.
This sturdy frame protects the front panel of the IC-705, and also provide a convenient carry handle.The base is tilted back 14 degrees to provide a convenient viewing angle. The kit includes a screen cover to protect the rig during transport or storage.
This frame is available as a print-to-order kit. Assembly is straightforward, requiring only a set of metric hex keys and an adjustable wrench. You can view the assembly manual here:
Frames are printed to order and can take 5 to 10 business days from the time you order until they ship,, depending on our current order backlog.
Price includes domestic shipping.
Colors
The standard color for the frame is black as shown in the photos, but you can request one of these custom colors when you order:
Olive Green
Orange
Red
Here’s a great assembly video by Steve, KM9G
Check out Steve’s YouTube channel, Temporarily Offline, for lots of other great ham radio content.
Here’s are review from Sean, W9FFF after using the frame on his IC-705 for several weeks
Sean has lot’s of other lively ham radio content on his YouTube channel Ham Radio Dude
And I’m no YouTuber, but here’s what the prototype looked like in my back yard
